Used Machines
Multivac R230
Manufacturer:
Multivac
Type:
R230
Year Built:
2003

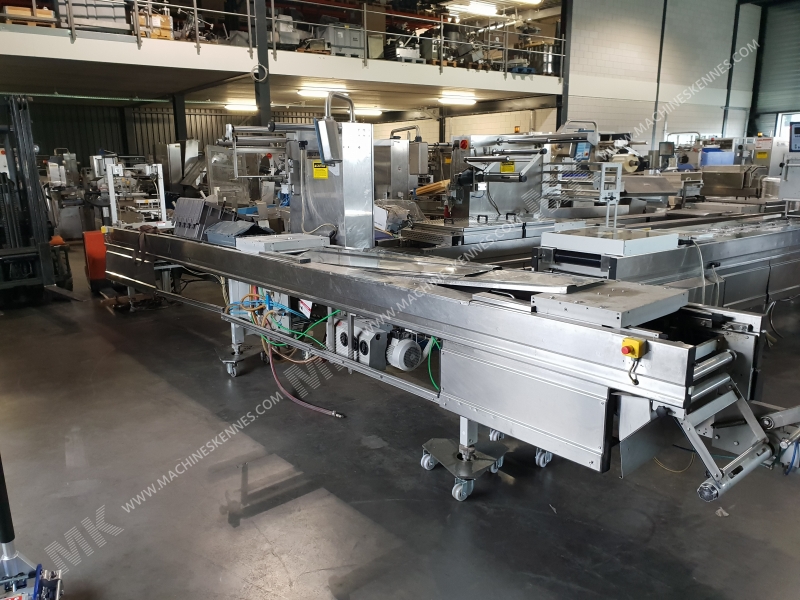

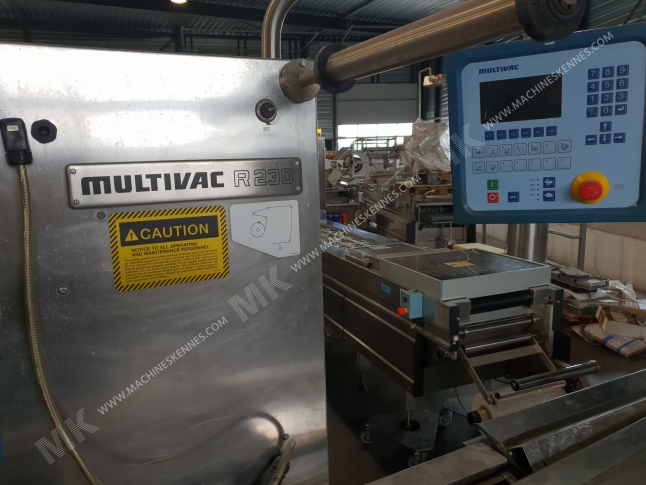

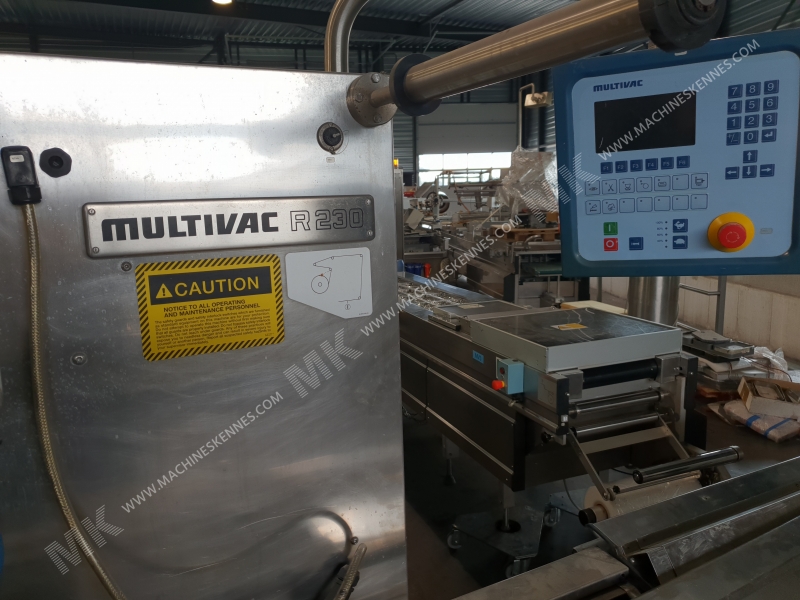

This used Multivac R230 Thermoformer is built in 2003. The machine has a film width of 420mm and there is a dye set on the machine with an exit of 400mm. The format is now divided in a 2.1 format. The machine is equipped with 1 format. This format can be used for Soft Folie packaging. The format does not have a stamp. The frame of the machine is currently 6700mm long, but we can always adjust this to the dimension you need.
Machine details
- Type under foil unwinding: 76mm Core.
- Type top foil unwinding: 76mm core.
- The machine has 1 QRF cut.
- The machine is equipped with a Role scissors intersection length cutting.
- For the process the residual foil is a Roll-up wheels on this machine.
- The products come from the machine on a Fibre Band.
Other features of the machine
- Vacum option
- Gas flushing
- Forming Pump
If you wish, you can contact us more photos or information.
