Multivac R145

Manufacturer:

Multivac

Type:

R145

Year Built:

2010

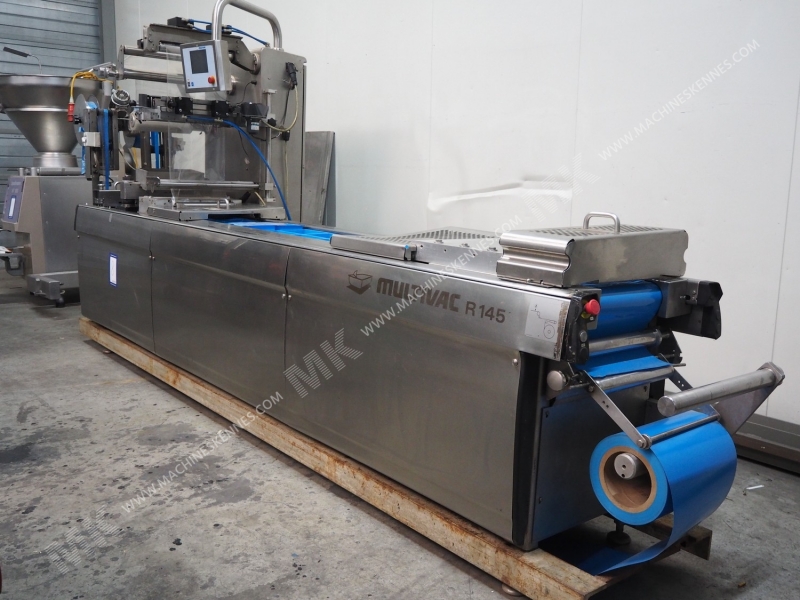

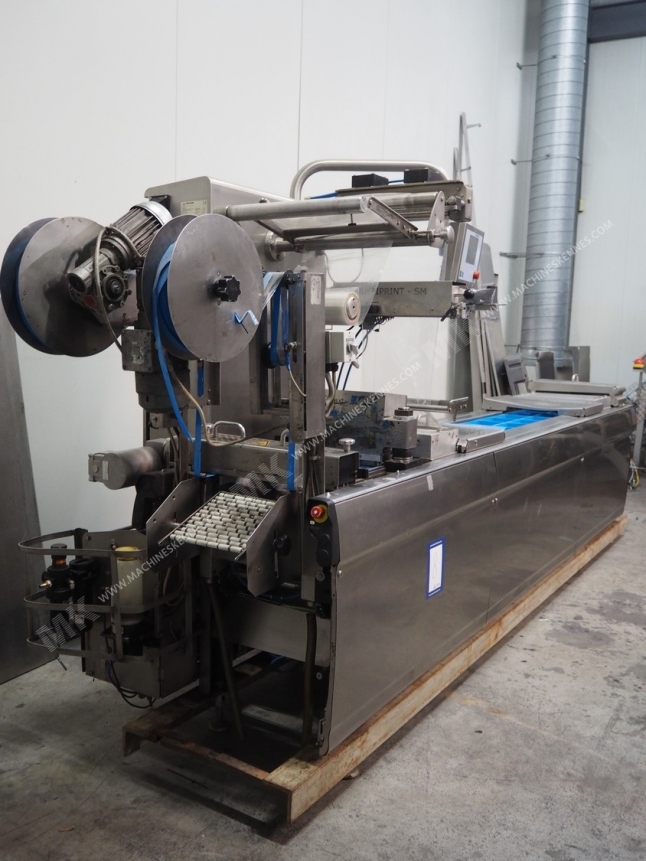

This used Multivac R145 Thermoformer is built in 2010. The machine has a film width of 355mm and there is a dye set on the machine with an exit of 220mm. The format is now divided in a 2.1 format. The machine is equipped with 1 format. This format can be used for Rigid film packaging. The format does not have a stamp. The frame of the machine is currently 6000mm long, but we can always adjust this to the dimension you need.

Machine details

  • Type under foil unwinding: 76mm Core.
  • Type top foil unwinding: 76mm core.
  • The machine has 1 cut stans (Hard foil).
  • The machine is equipped with a length cutting.
  • For the process the residual foil is a Trim Bin on this machine.
  • This machine has no output belt.

Other features of the machine
  • Vacum option
  • Gas flushing
  • Forming Pump

If you wish, you can contact us more photos or information.
